Minisol S – 80 W

Minisol S – 80 W

Category Public and Roadway

COMFORT, SAFETY AND QUALITY

Public road luminaires guarantee comfort, safety and aesthetic quality on the roads where they are installed. With their innovative design and Liteleds’ greater efficiency, they reduce energy consumption and maintenance costs.

They are also ready for remote management, making it possible to achieve more intelligent and efficient lighting.

Applications:

public roads

parks and squares

PARKING

CONDOMI-
NIUMS

CONDOMINIUMS

Technical Specifications

Public roadway luminaire in SMD LED technology with NEMA 7 or NEMA 3 socket prepared for dimming, body treated for infrared and ultraviolet rays with electrostatic anti-corrosion paint in light grey (RAL7035) and stainless steel screws.

Model	Minisol S60W	Minisol S80W	Minisol S100W	Minisol S120W	Minisol S150W
Nominal Power	60 W	80 W	100 W	120 W	150 W
Nominal Voltage	100 to 277 Vac
Nominal Frequency	50/60 Hz
Power Factor	> 0,95	> 0,95	> 0,95	> 0,95	> 0,95
Harmonic Distortion - THDi	< 10%
Surge Protection	15 kA / 10 kV (IEC 61000-4-5:2014) Class II – Series connection with the load
Total Luminous Flux	9600 Lm	12400 Lm	16500 Lm	19200 Lm	24000 Lm
Luminous Efficacy	160 Lm/W	155 Lm/W	165 Lm/W	160 Lm/W	160 Lm/W
Color Rendering Index	> 70
Color Temperature	4000 K / 5000 K
Photometric Classification	IESNA Type II – Short – Limited
LED Lifespan	100,000 h
Luminaire Lifespan	66.000 h
IP Protection Rating	IP 66
Operating Temperature	-5ºC to +50ºC
Protection Against Electric Shock	Class I
Mechanical Resistance	IK 08
Net Weight	2,3 kg	2,3 kg	4,4 kg	4,4 kg	4,4 kg

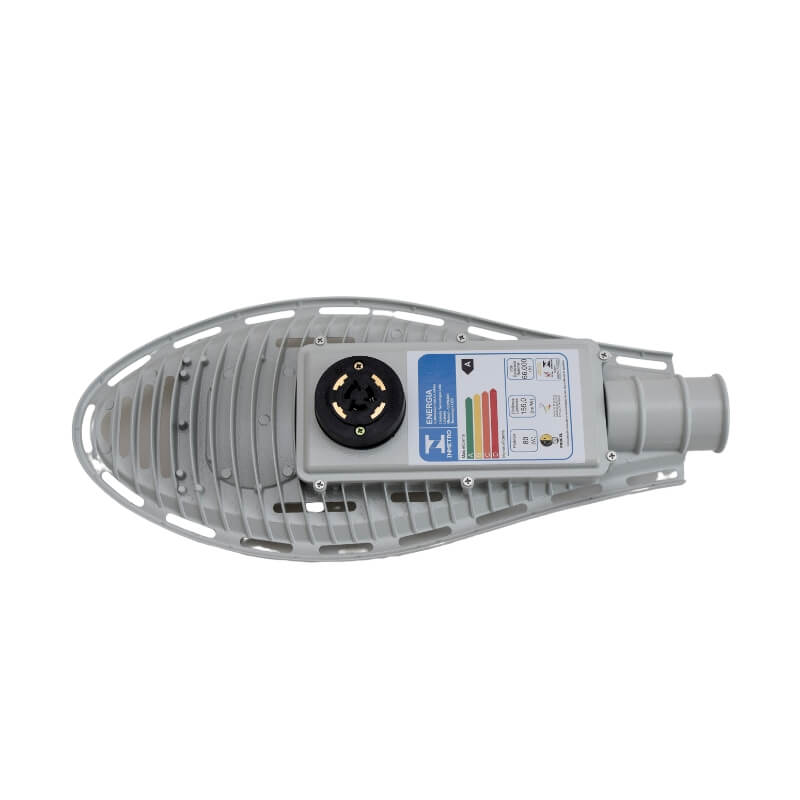

Socket for Photocell Relay	7-Pin Socket ANSI C.136.41 (NEMA 7) / 3-Pin Socket NBR 5123 (NEMA 3) / Without Socket
Luminaire Material	Injected Aluminum
Lens Material	Borosilicate Glass
Fixation	1" to 2" Arm	1" to 2" Arm	1½" to 2½" Arm	1½" to 2½" Arm	1½" to 2½" Arm
Validity	Undetermined
Warranty	5 years

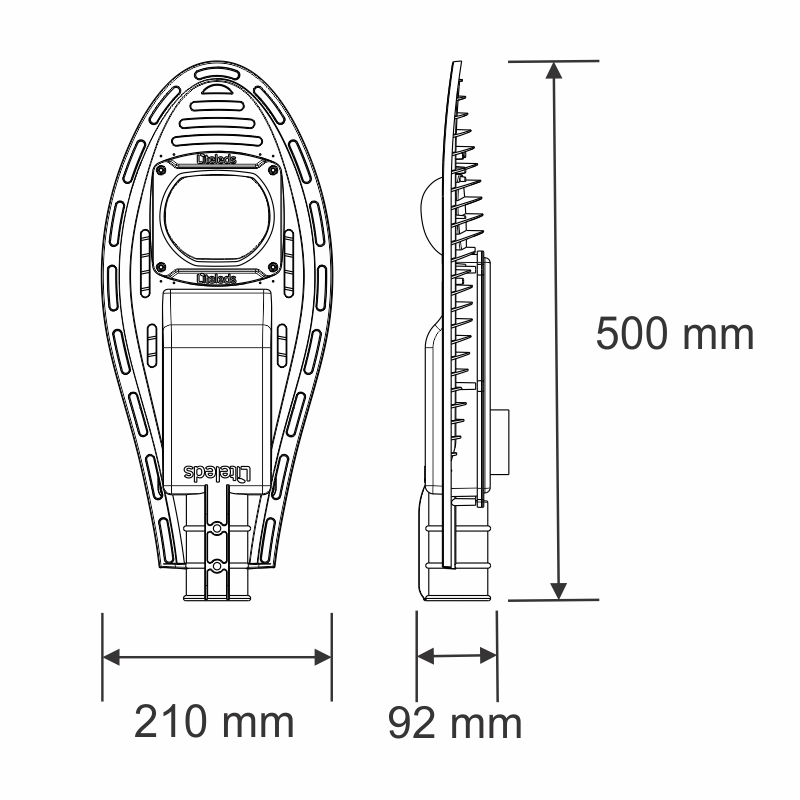

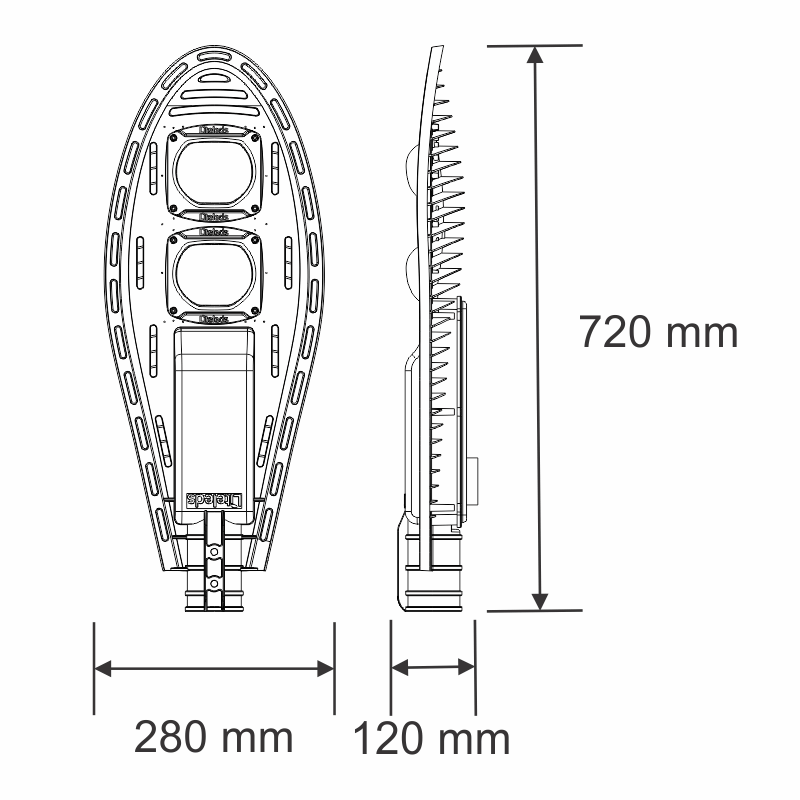

Dimensions (A x B x C)	210 x 500 x 92 mm	210 x 500 x 92 mm	280 x 720 x 120 mm	280 x 720 x 120 mm	280 x 720 x 120 mm
Dimming	1–10 V / Without Dimming (optional)
Angle Adjuster	-10° to 90° (optional)

NBR IEC 60598-1 – Luminaires – Part 1: General Requirements and Tests;
NBR IEC 62262 – Degrees of Protection Provided by Enclosures of Electrical Equipment Against External Mechanical Impacts (IK Code); IEC/PAS 62722-2-1 – Luminaire Performance – part 2-1: Particular requirements for LED luminaires;
IEC 61000-4-4 – Electromagnetic Compatibility (EMC) – Part 4-4: Testing and Measurement Techniques – Electrical Fast Transient/Burst Immunity Test;
IEC 61000-4-5 – Electromagnetic Compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test;
NBR 16026 – DC or AC electronic control gear for LED modules – Performance requirements;
ABNT NBR IEC 60529:2005 – Degrees of protection for enclosures of electrical equipment (IP Code);
IES LM-79 – Electrical and Photometric Measurements of Solid-State Lighting Products;
IES LM-80 – Measuring lumen maintenance of led light sources.

Liteleds reserves the right to make changes and/or corrections without prior notice. Please check the conditions with our consultants. Images are for illustrative purposes only.
